Cardiac Axis

-

Cardiac axis

Cardiac axis describes the overall direction of electrical spread within the heart.
In a healthy individual the axis should spread from 11 o’clock to 5 o’clock.

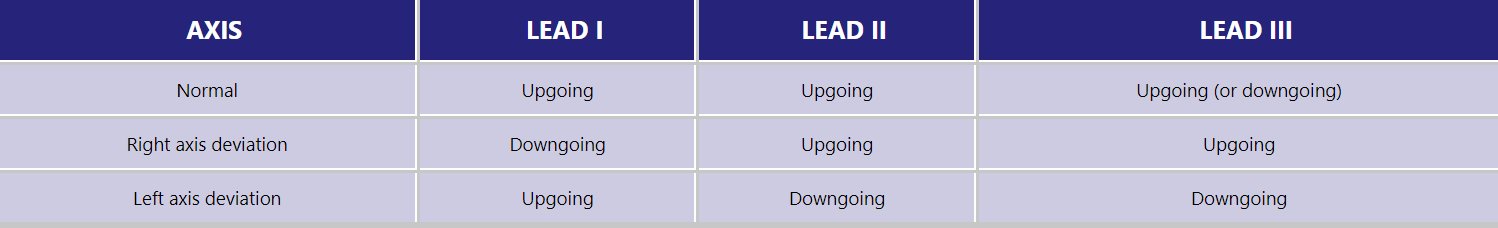

To determine the cardiac axis you need to look at leads I,II and III.


Normal cardiac axis

In normal cardiac axis:
    Lead II has the most positive deflection compared to Leads I and III
.

Right axis deviation

In right axis deviation:
     Lead III has the most positive deflection and Lead I should be negative
     This is commonly seen in individuals with right ventricular hypertrophy

Left axis deviation

In left axis deviation:
     Lead I has the most positive deflection
     Leads II and III are negative
     Left axis deviation is seen in individuals with heart conduction defects
